Crane Truck Styles



CraneTruckCraneTruck2

Petco 960A

- 12' x 96" Wide Aluminum bed w/ Heavy Duty Headboard w/ cutout window, bed has serrated surface, w/ (4) D-rings, (2) tubing holders, and (3) shovel holders on headboard.
- HT25KX, 5000#, Hydraulic crane (non-proportional controls), w/20ft. reach, (manual extension 16 - 20ft.), 400 degree rotation w/ corded controller, PTO driven Hydraulic system.
- Outriggers, Manual Out/Manual Down, w/ 58" wide grip strut step.
INCREASED STORAGE CAPACITY - DEEPEST IN THE INDUSTRY

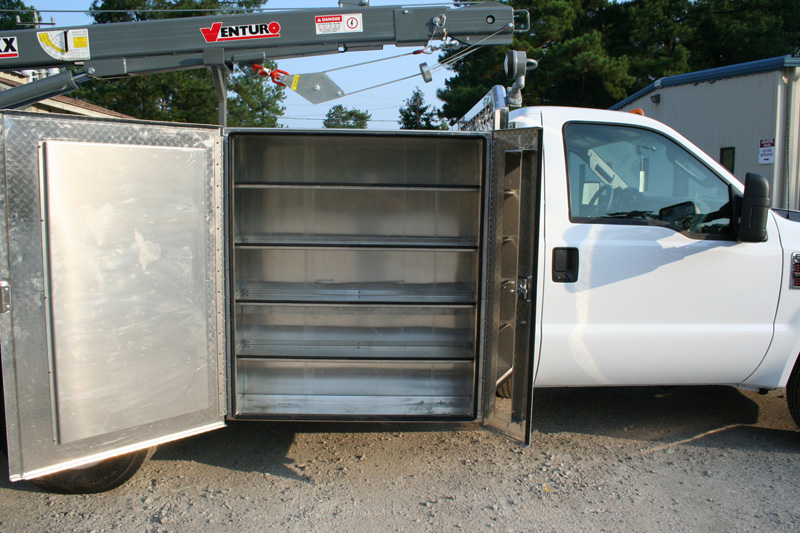

- (1) 60 1/2"H X 48"W x 18"D, Recessed Aluminum tool box w/double doors & shelves. (Passenger Side)
- (1) 18"H x 18"D x 48"W, Deck mounted Aluminum tool box w/ drop down door & shelf. (Passenger Side)
- (1) 18"H x 18"D x 18"W, Underbody Aluminum tool box w/ drop down door. (Passenger Side)
- (1) 18"H x 18"D x 24"W, Underbody tool box w/ drop down door. (Drivers Side)
- Spring Reinforcement (Crane Side)
- 20# Fire Extinguisher, Chock Blocks, & Reflector Kit.
- (1) Tool box protectir railing w/ boom rest.
- (3) Vertical e-tracks on headboard & (5) Vertical e-tracks on tool box protector railing.
- (1) Retractable Vise mount w/ pipe holder.
- (1) Trailer hitch w/ 12V wiring harness & trailer light receptacle.
- LED lighting system w/ Betts Swivel work light & Back-up alarm.
- (4) 1075 Flip Placcards.




CraneTruck3 CraneTruck4

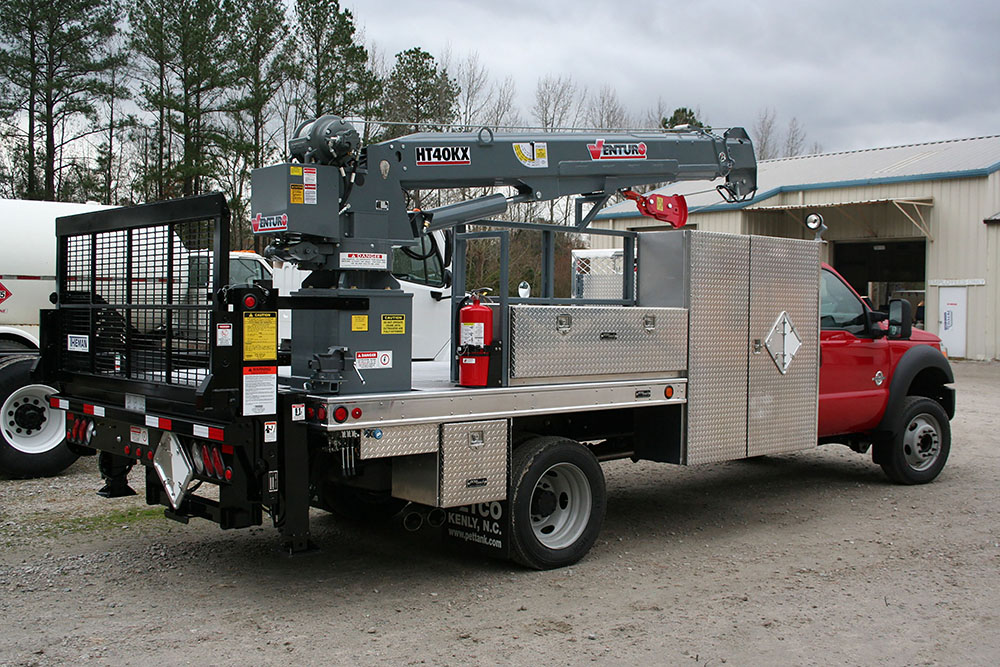

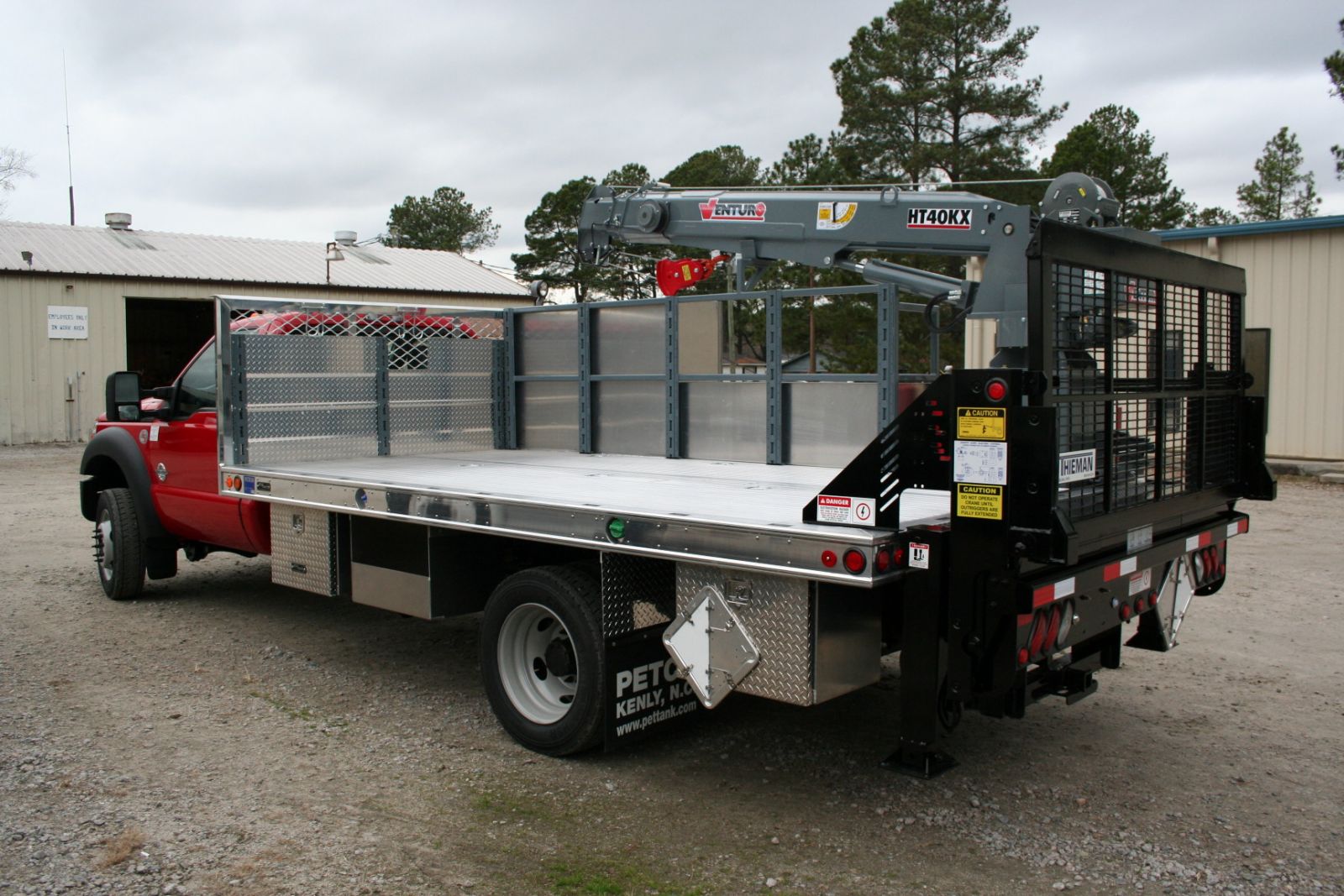

PETCO 1500A

- 14' x 102" Wide Aluminum bed w/ Heavy Duty Headboard w/ cutout window, bed has serrated surface, w/ (4) D-rings, (2) tubing holders, and (3) shovel holders on headboard.
- HT40KX, 6000#, Hydraulic crane (non-proportional controls), w/20ft. reach, (manual extension 16 - 20ft.), 400 degree rotation w/ corded controller, PTO driven Hydraulic system.
- Outriggers, Manual Out/Hydraulic Down, w/ 58" wide grip strut step.
INCREASED STORAGE CAPACITY - DEEPEST IN THE INDUSTRY
- (1) 60 1/2"H X 60"W x 18"D, Recessed Aluminum tool box w/double doors & shelves. (Passenger Side)
- (1) 18"H x 18"D x 60"W, Deck mounted Aluminum tool box w/ drop down door & shelf. (Passenger Side)
- (1) 18"H x 18"D x 18"W, Underbody Aluminum tool box w/ drop down door. (Passenger Side)
- (1) 18"H x 18"D x 24"W, Underbody tool box w/ drop down door. (Drivers Side)
- Spring Reinforcement (Crane Side)
- 20# Fire Extinguisher, Chock Blocks, & Reflector Kit.
- (1) Tool box protector railing w/ boom rest.
- (3) Vertical e-tracks on headboard & (5) Vertical e-tracks on tool box protector railing.
- (1) Retractable Vise mount w/ pipe holder.
- (1) Trailer hitch w/ 12V wiring harness & trailer light receptacle.
- LED lighting system w/ Betts Swivel work light & Back-up alarm.
- (4) 1075 Flip Placcards.



CraneTruck5

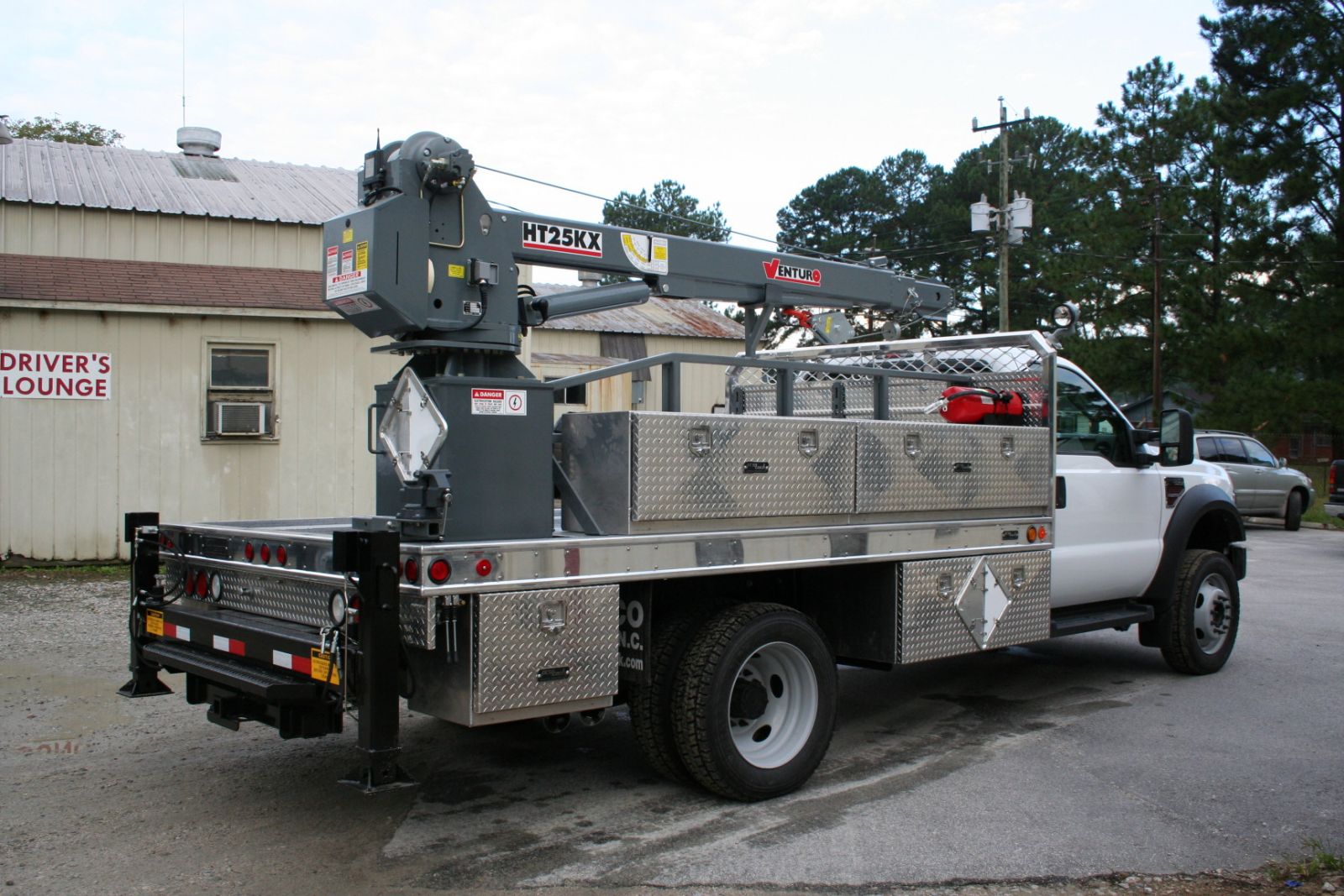

PETCO 960

- 12' x 96" Wide Aluminum bed w/ Heavy Duty Headboard w/ cutout window, bed has serrated surface, w/ (4) D-rings, (2) tubing holders, and (3) shovel holders on headboard.
- ET25KX, 5000#, Electric/Hydraulic crane (non-proportional controls), w/20ft. reach, (manual extension 16 - 20ft.), w/1000 CCA Battery, Max. capacity 5000#, fully extended 1050#
- Outriggers, Manual Out/Manual Down, w/ 58" wide grip strut step.
INCREASED STORAGE CAPACITY - DEEPEST IN THE INDUSTRY
- (2) 18"H X 18"W x 48"D, Deck mounted Aluminum tool box w/double doors & single shelf in each box. (Passenger Side)
- (1) 18"H x 18"D x 18"W, Underbody Aluminum tool box w/ drop down door . (Passenger Side)
- (1) 18"H x 18"D x 48"W, Underbody Aluminum tool box w/ drop down door. (Passenger Side)
- (1) 18"H x 24"D x 24"W, Underbody tool box w/ drop down door. (Drivers Side)
- Spring Reinforcement (Crane Side)
- 20# Fire Extinguisher, Chock Blocks, & Reflector Kit.
- (1) Tool box protector railing w/ boom rest.
- (3) Vertical e-tracks on headboard & (5) Vertical e-tracks on tool box protector railing.
- (1) Retractable Vise mount w/ pipe holder.
- (1) Trailer hitch w/ 12V wiring harness & trailer light receptacle.
- LED lighting system w/ Betts Swivel work light & Back-up alarm.
- (4) 1075 Flip Placcards.



CraneTruck6

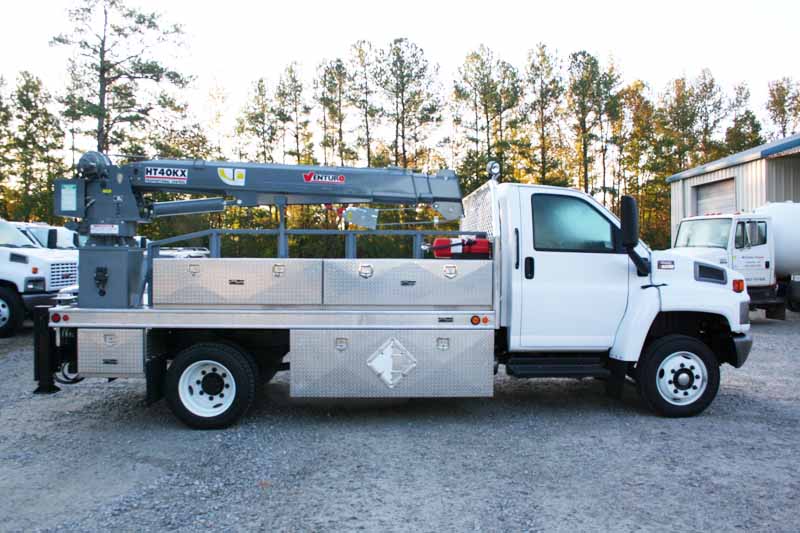

Petco 1500

- 14' x 102" Wide Aluminum bed w/ Heavy Duty Headboard w/ cutout window, bed has serrated surface, w/ (4) D-rings, (2) tubing holders, and (3) shovel holders on headboard.
- HT40KX, 6000#, Hydraulic crane (non-proportional controls), w/20ft. reach, (manual extension 16 - 20ft.), 400 degree rotation w/ corded controller, PTO driven Hydraulic system.
- Outriggers, Manual Out/Hydraulic Down, w/ 58" wide grip strut step.
INCREASED STORAGE CAPACITY - DEEPEST IN THE INDUSTRY
- (1) 24"H X 60"W x 24"D, Recessed Aluminum tool box w/double doors & shelves. (Passenger Side)
- (1) 18"H x 18"D x 60"W, Deck mounted Aluminum tool box w/ drop down door & shelf. (Passenger Side)
- (1) 18"H x 18"D x 18"W, Underbody Aluminum tool box w/ drop down door. (Passenger Side)
- (1) 18"H x 18"D x 24"W, Underbody tool box w/ drop down door. (Drivers Side)
- Spring Reinforcement (Crane Side)
- 20# Fire Extinguisher, Chock Blocks, & Reflector Kit.
- (1) Tool box protector railing w/ boom rest.
- (3) Vertical e-tracks on headboard & (5) Vertical e-tracks on tool box protector railing.
- (1) Retractable Vise mount w/ pipe holder.
- (1) Trailer hitch w/ 12V wiring harness & trailer light receptacle.
- LED lighting system w/ Betts Swivel work light & Back-up alarm.
